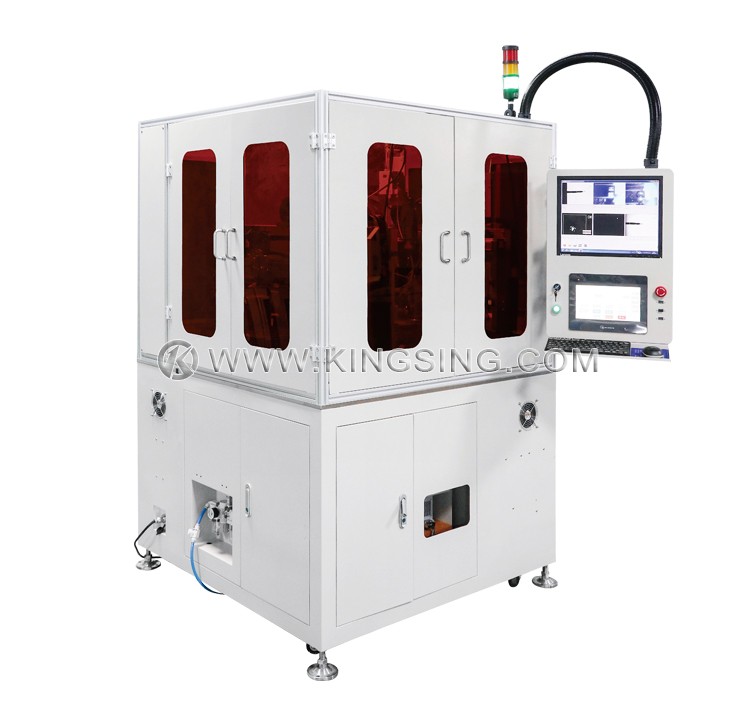

The equipment is docked with the front-end wire harness crimping and soldering machine or the wire harness double-head soldering machine, which can fully automatically realize the automatic loading of the entire PCB board—automatic feeding of the coaxial line—automatic laser welding of the entire PCB board—automatic receiving of finished products, complete the entire process.
Cutting capacity: 50mm-400mm
Processing diameter: 0.81-1.78mm
Applicable to the whole PCB board: the length range of the whole board PCB board: 200-250mm;
the width range: 175-200mm
Cutting depth setting unit: 0.01mm
Equipment utilization rate: ≥95%
Working pressure: ≥0.5Pa
Working voltage: AC220V±10V
Yield rate: ≥97%
Dimensions: 1500*1200*1900mm
Total power of equipment: 3KW
Weight: 1200kg
Production efficiency: 800--950PCS/H (efficiency will vary according to the number of solder joints on the entire PCB board)
