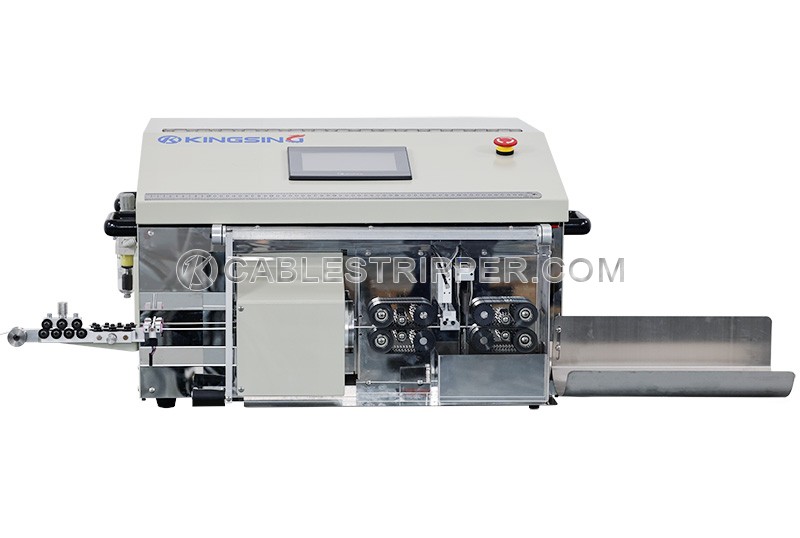

Automatic Coaxial Cable Cutting Stripping Machine

  • Model:KS-W881
  • Net. Weight:
  • Dimension:

1、This is a fully automatic coaxial wire cutting and stripping machine, mainly used for processing flexible coaxial cables, such as: 0.81mm, 1.31mm, 1.37mm, 1.74mm, 1.78mm, 3.16mm, etc. This machine can strip wires in 6 layers at most, and the cutting length, the cutting depth of each layer and the stripping length can be set in the program.

2、This machine contains 2 sets of cutters. The rotating blade is used to cut through the wire sheath at the stripping position. The cutting accuracy can reach 0.01mm. It can cut the wire sheath 360 degrees according to the cutting depth set in the program, so it can be precisely cut through the braid. Then use another set of V-shaped cutters to cut the wire and pull off the layers of wire sheath. Both sides of the blade edge are equipped with an automatic air blowing device, which can blow away the waste wire sheath in time.

3、The wire feeding by the pulley greatly increases the contact area between the wire and the feeding wheel. The pressure of the wire feeding wheel can be set in the program without any mechanical adjustment. Different values can be set separately for the wire feeding pressure and the wire stripping pressure, so the processing accuracy can be guaranteed It does not crush the wire, and there is no indentation on the surface of the wire sheath.

4、This machine is also equipped with an automatic wire feeding machine suitable for flexible coaxial cables, which can maintain a constant wire feeding tension, which is conducive to improving processing accuracy and stability. The wire feeding machine can be linked with the wire stripping machine, and the wire is automatically fed, and the wire is automatically stopped when the wire is not needed. 5 meters of wire can be pre-stored in the pulley block of the wire feeding machine, and the wire can be continuously and stably fed when processing long wires.

5、Color touch screen operation interface, parameter setting is intuitive and easy to understand, can store up to 40 sets of processing programs, can save the processing parameters of different wire materials in different program numbers, and can call out the corresponding processing parameters with one key when switching wire materials.

Applicable wire diameter: Φ0.64~4.0mm

Cutting length: 22~9999mm

Maximum stripping length: thread head 200mm, thread tail 45mm

Program accuracy unit: 0.01mm

Maximum stripping layers: 6 layers

Program memory function: up to 40 groups of programs can be saved

Production efficiency: 700~1200 pieces/hour

Working voltage: AC 220V 50/60Hz

Rated power: 800W

Net weight: 100kg

Dimensions: 760*700*400mm (excluding wire feeder)

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
