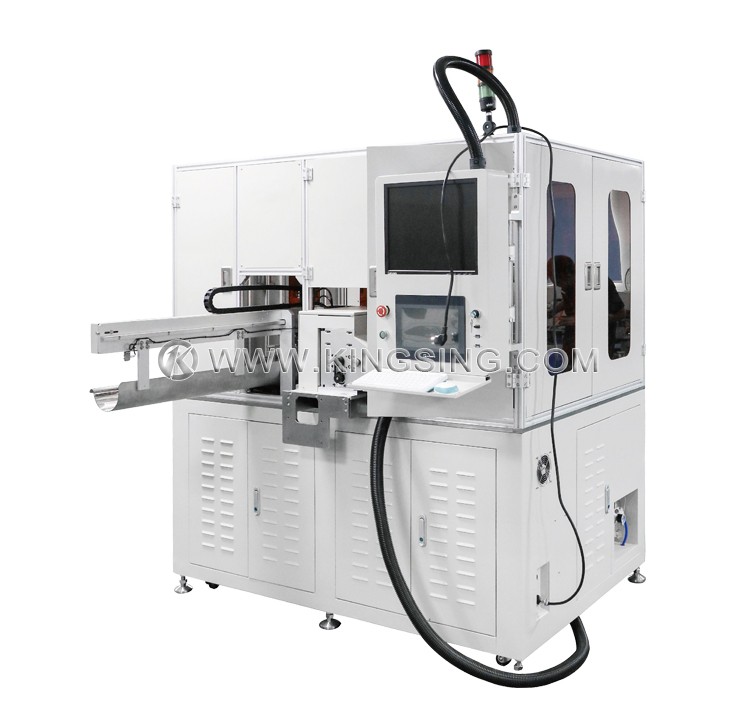

Coaxial Cable Stripping Tinning & Terminating Machine

  • Model:
  • Net. Weight:
  • Dimension:

1. Deep integration of automation, informatization and intelligent manufacturing;

2. High security, high reliability and high operability;

3. It can be connected to the back-end welding plate and automatic assembly machine.

Cutting capacity: A: single-end single-end dipping tin work: 50-900mm

                            B: Double-head crimping work: 50-300mm

Processing diameter: 0.81-1.78mm

Cutting depth setting unit: 0.01mm

Equipped with terminal machines according to customer needs (1-4.5 generation terminals are available)

Equipment utilization rate: ≥95%

Working pressure: not less than 0.5Mpa

Working voltage: AC220V±10V

Yield rate: ≥98%

Dimensions: 1600*2000*2100mm

Total power of equipment: 4.5KW

Weight: 1500kg

Production efficiency: 850-1150PCS/H (depending on the stripping length)
