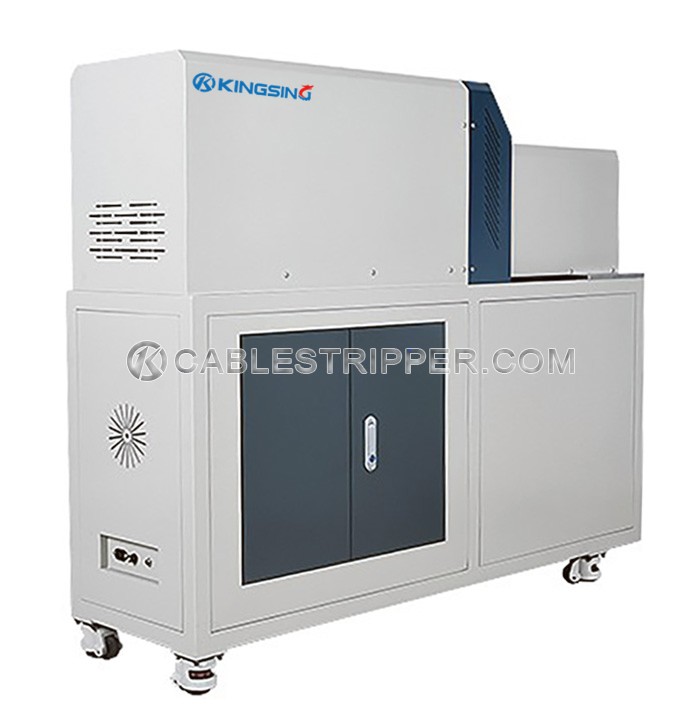

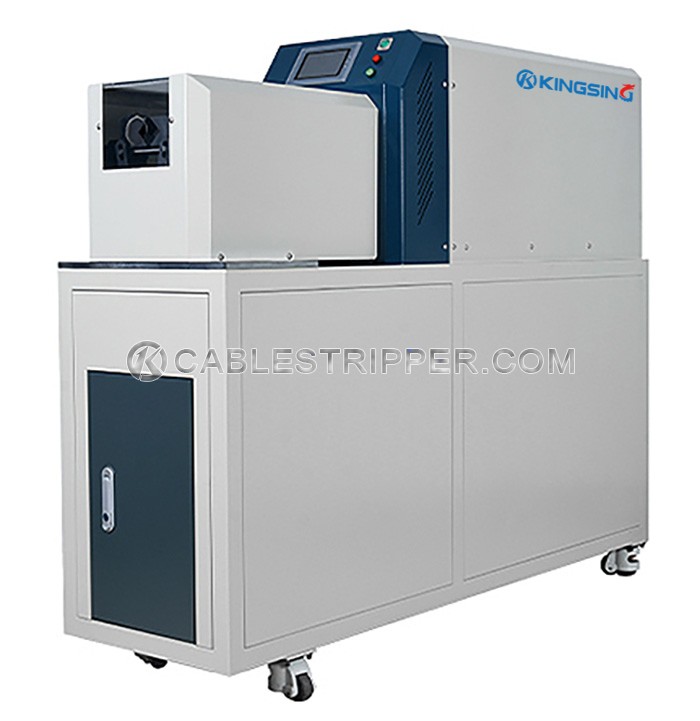

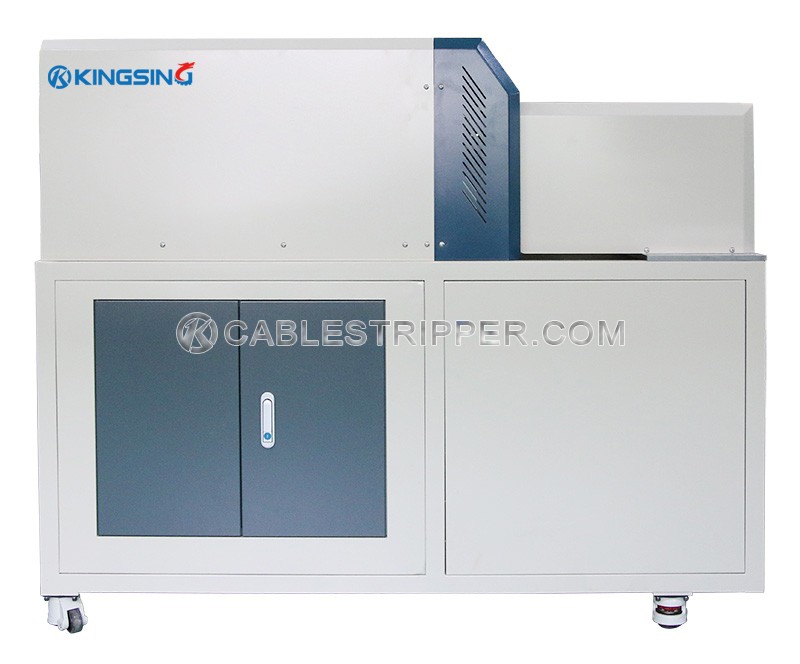

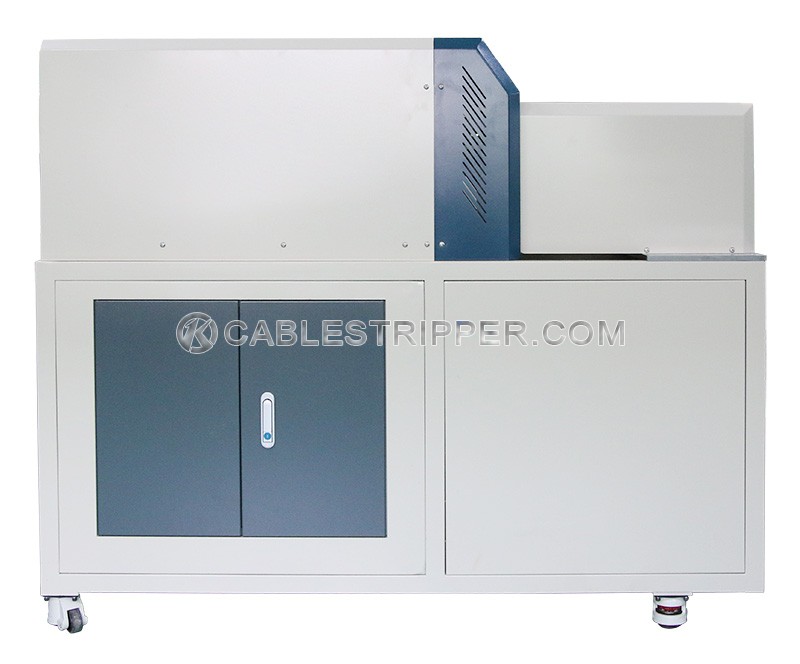

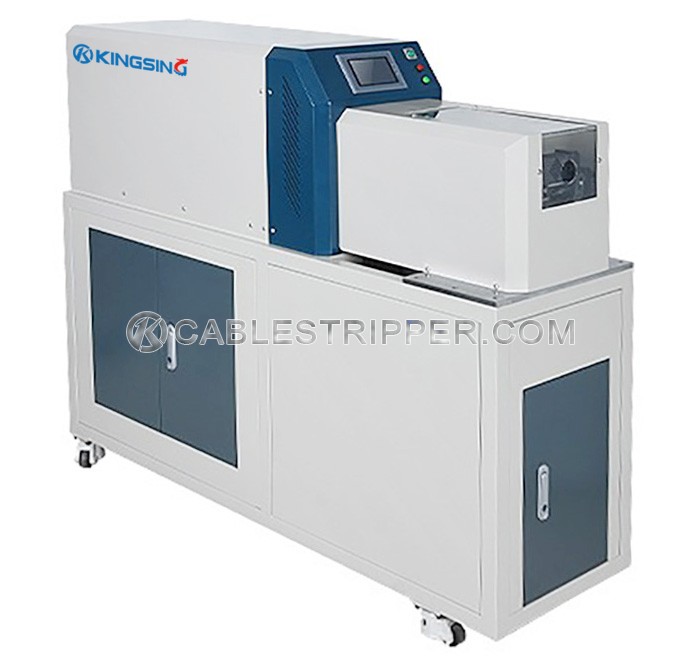

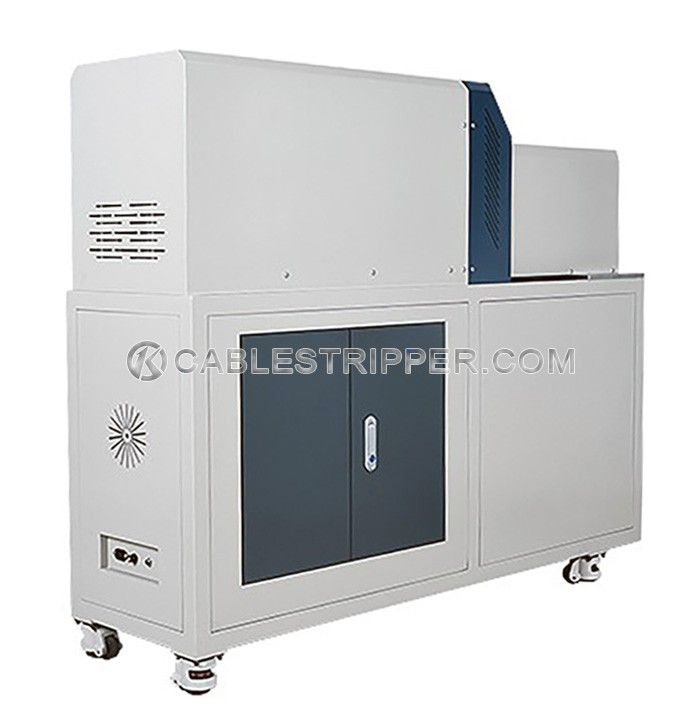

1、This is a floor-standing large square new energy cable rotary blade stripping machine, suitable for processing various automotive cables, medical cables, high temperature wires, new energy high voltage wires, etc. It uses 4 pieces of high-precision tungsten steel blades to rotate and strip the wires. The maximum stripping diameter can reach 34mm, and the maximum stripping length can reach 300mm. The rotating blade can cut the stripping position 360 degrees, the stripping mouth is smooth, the stripping length is precise, the cutting accuracy can reach 0.01mm, and the inner layer will not be damaged.
2、Color touch screen operation interface, parameter setting is intuitive and easy to understand. It can be stripped in up to 9 layers, and the cutting depth and stripping length of each layer can be freely set in the program. For example, when stripping a coaxial cable, the outer layer, braided layer, and core wire can be stripped to different lengths. Up to 99 groups of programs can be saved, and the processing parameters of different wire materials can be saved in different program numbers. When switching wire materials, the corresponding parameters can be called out with one key without mechanical adjustment.
Applicable wire diameter: Φ5~34mm
Maximum stripping length: 300mm
Program size accuracy: 0.01mm
Maximum stripping layers: 9 layers
Number of blades: 4 pieces
Production efficiency: 300~500 pieces/hour
Program memory function: up to 99 groups of programs can be saved
Working voltage: AC220/110V 50/60Hz
Rated power: 800W
Net weight: 225kg
