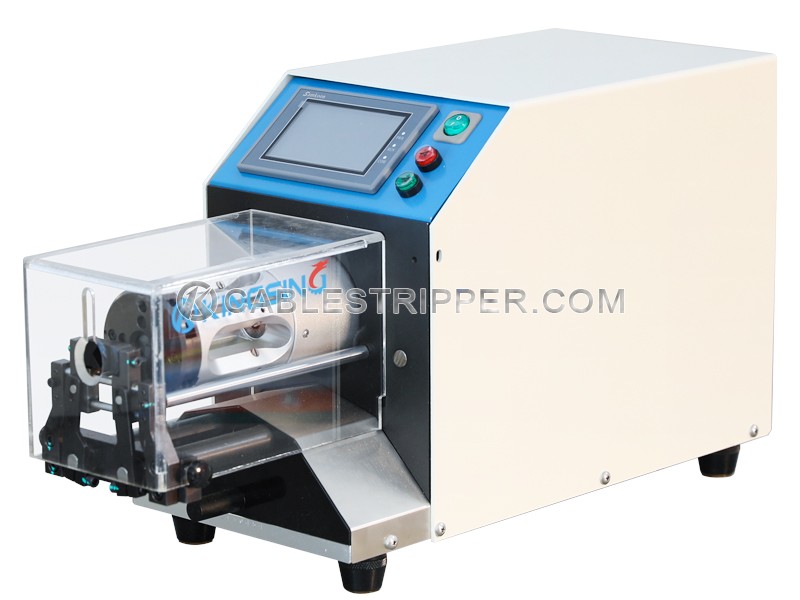

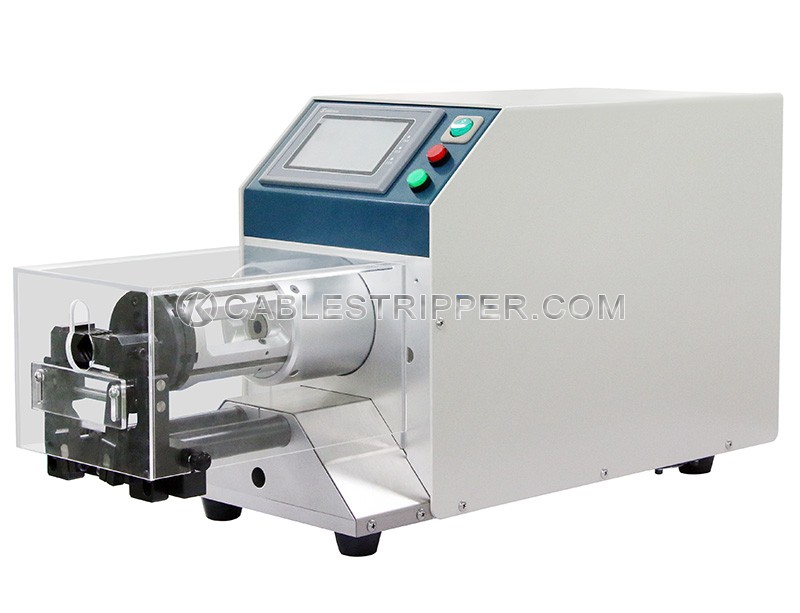

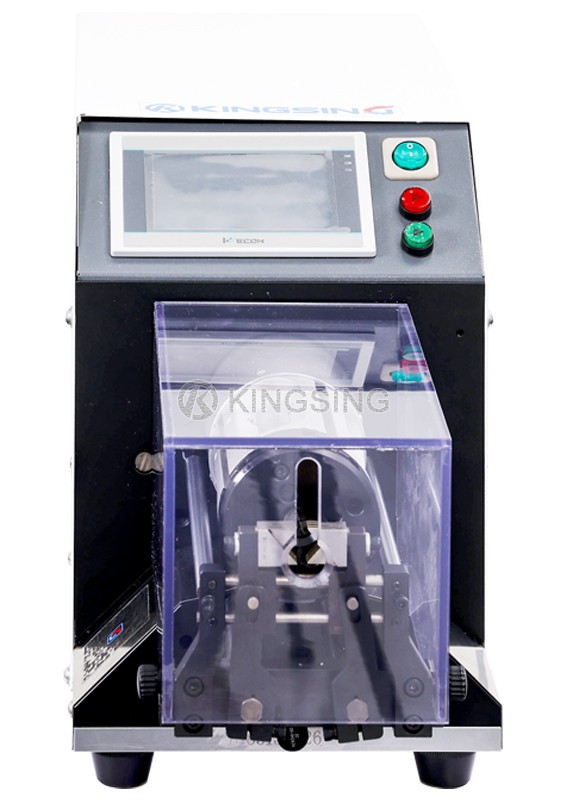

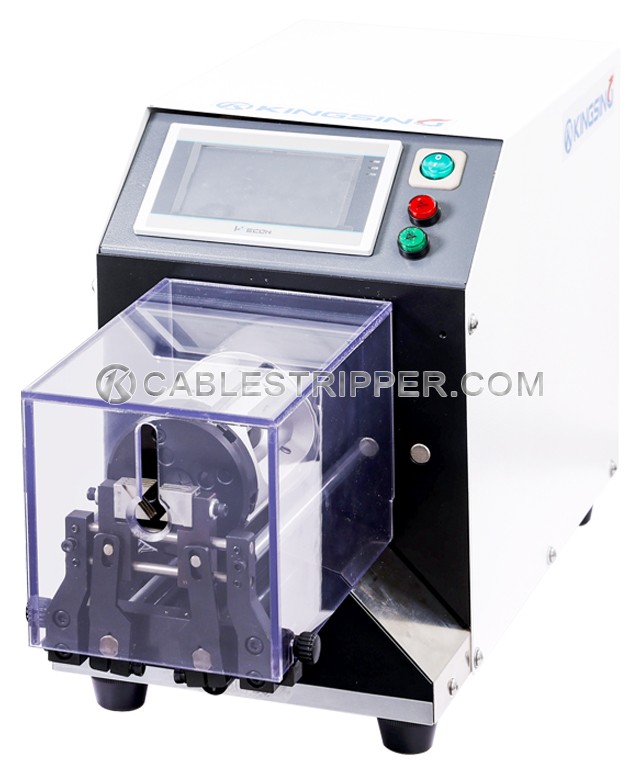

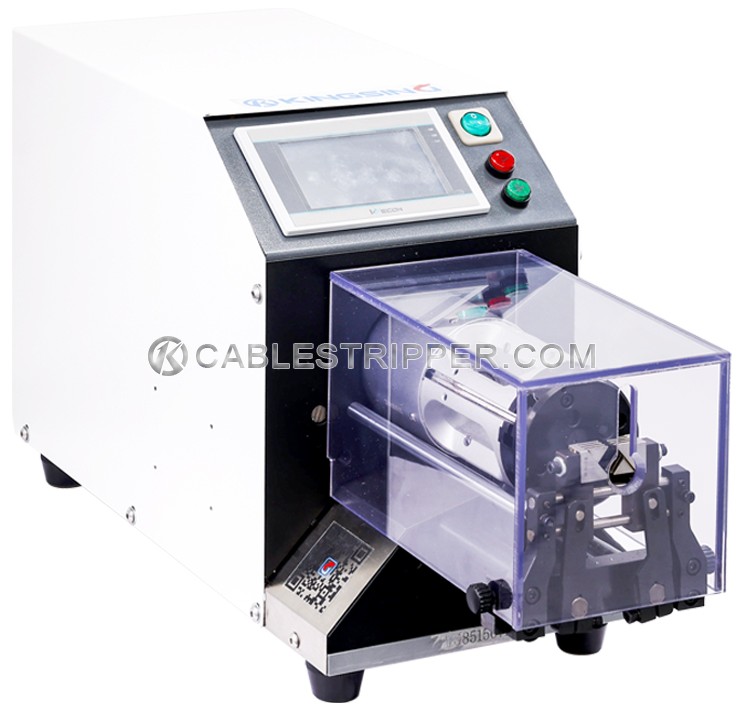

Semi-rigid Coaxial Cable Stripping Machine

  • Model:KS-W66 Series
  • Net. Weight:
  • Dimension:

1、This series of coaxial cable stripping machines includes 3 sub-models, which are suitable for processing various coaxial cables, automotive cables, medical cables, high temperature wires, new energy wires, etc.It uses 4 pieces of high-precision tungsten steel blades to rotate and strip wires, which is more advantageous when stripping thick wires. The rotating blade can cut the stripping position 360 degrees, the stripping mouth is smooth , the stripping length is precise, the cutting accuracy can reach 0.01mm, and the inner layer will not be damaged.

2、Color touch screen operation interface, parameter setting is intuitive and easy to understand. It can be stripped in up to 9 layers, and the cutting depth and stripping length of each layer can be freely set in the program. For example, when stripping a coaxial cable, the outer layer, braided layer, and core wire can be stripped to different lengths. Up to 99 groups of programs can be saved, and the processing parameters of different wire materials can be saved in different program numbers. When switching wire materials, the corresponding parameters can be called out with one key without mechanical adjustment.


Download: (1)
KINGSING
KINGSING

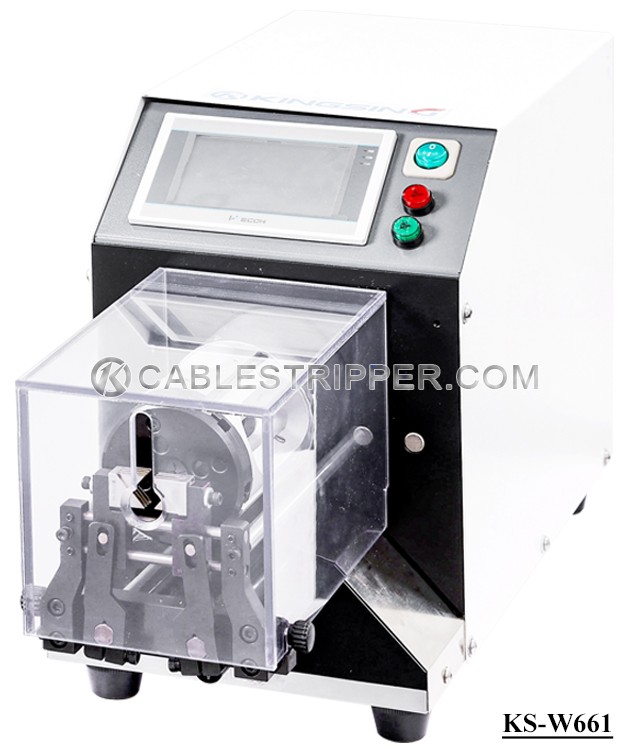

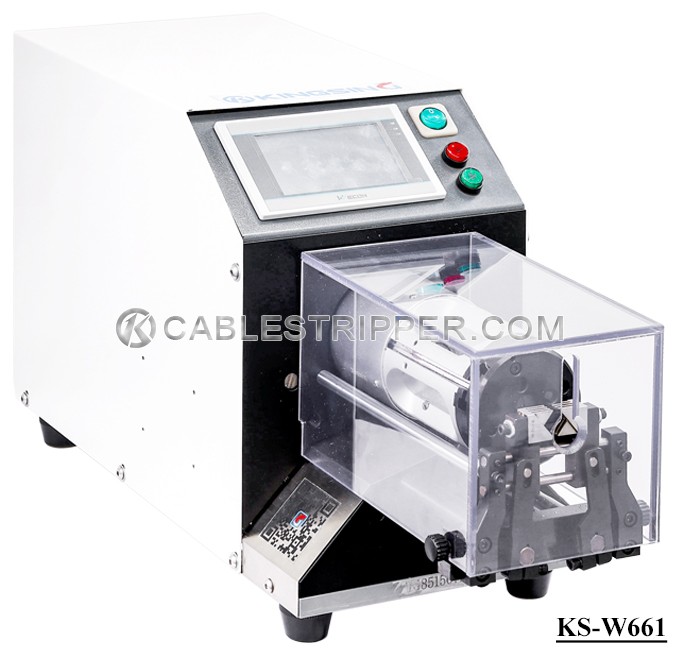

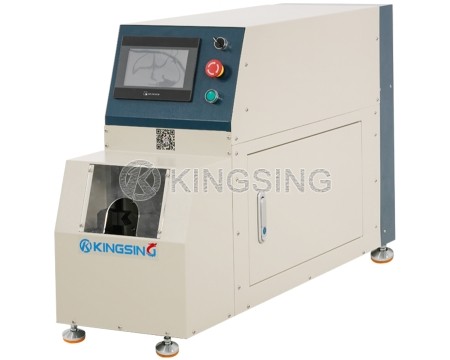

ModelKS-W6610KS-W661KS-W662
Applicable wire diameterΦ3~18mmΦ1.13~15mmΦ1.37~23mm
Maximum stripping length90mm85mm80mm
Rated power600W
380W380W
Net weight
42kg26kg26kg
Dimensions
720*230*350mm620*218*335mm620*230*360mm

Number of blades: 4 pieces

Program minimum setting unit: 0.01mm

Maximum stripping layers: 9 layers

Production efficiency: 400~600 pieces/hour

Program memory function: up to 99 groups of programs can be saved

Working voltage: AC 220/110V 50/60Hz


Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
