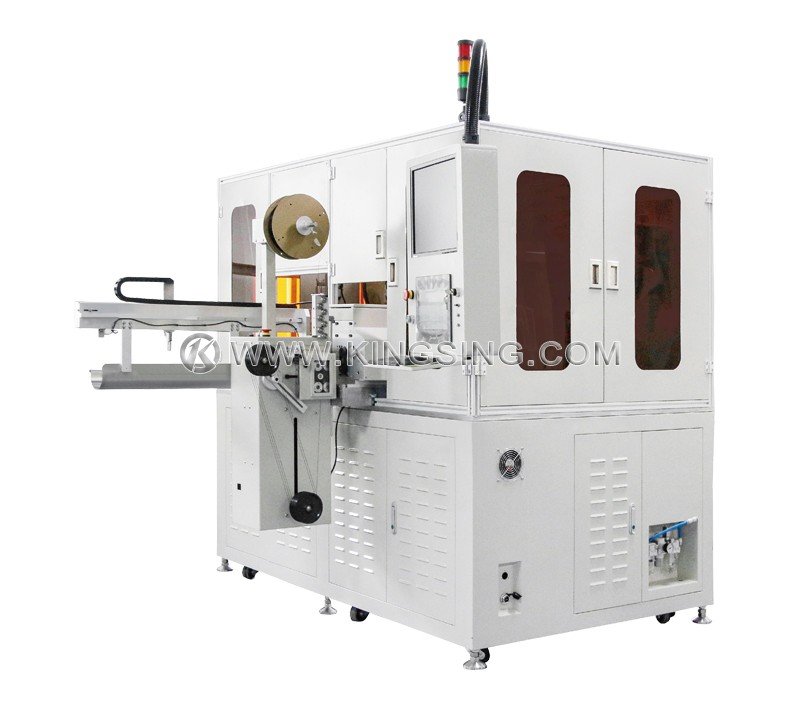

Coaxial Cable Stripping Tinning and Crimping Machine

  • Model:
  • Net. Weight:
  • Dimension:

The equipment can fully automatically realize the whole process of wire cutting-stripping-automatic detection-twisting core wire (optional)-core tinning (optional)-printing terminals-electrical testing-finished products and defective products respectively.

Cutting capacity: 35-380mm

Processing diameter: 0.64-1.78mm

Cutting depth setting unit: 0.01mm

Equipment utilization rate: ≥95%

Working pressure: 0.5Pa

Yield: finished product yield ≥ 99%

Dimensions: 2300*2800*2200mm

Total power of equipment: 4.5KW

Weight: 1600kg

Production efficiency: 900--1200 PCS/H (depending on the stripping length)
