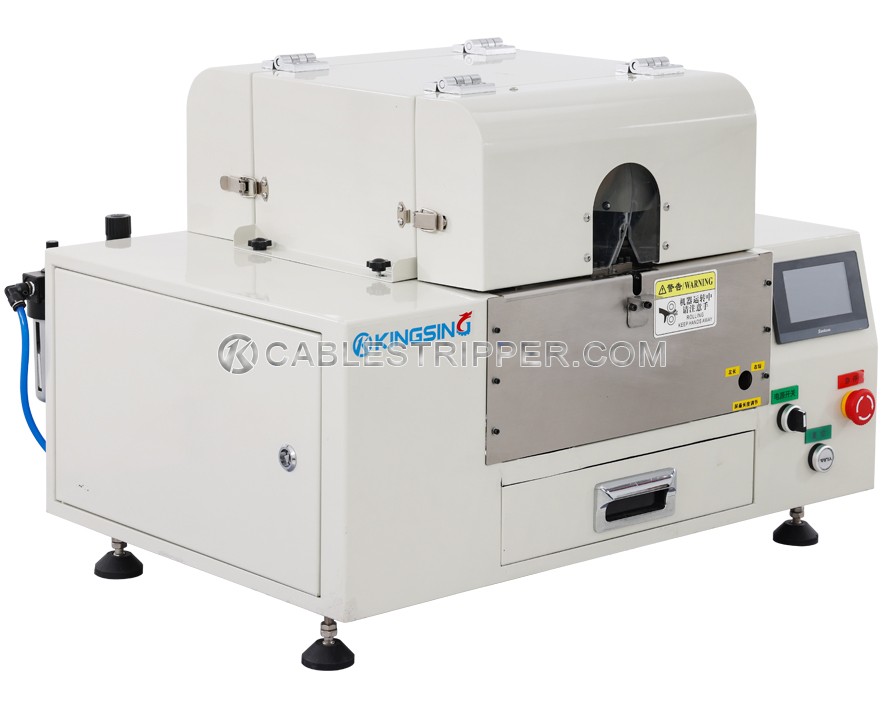

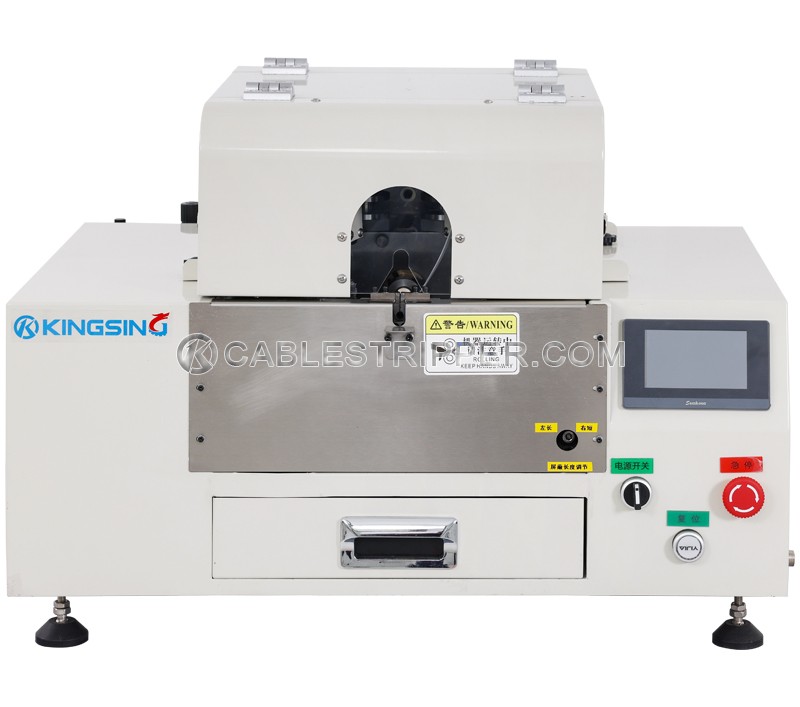

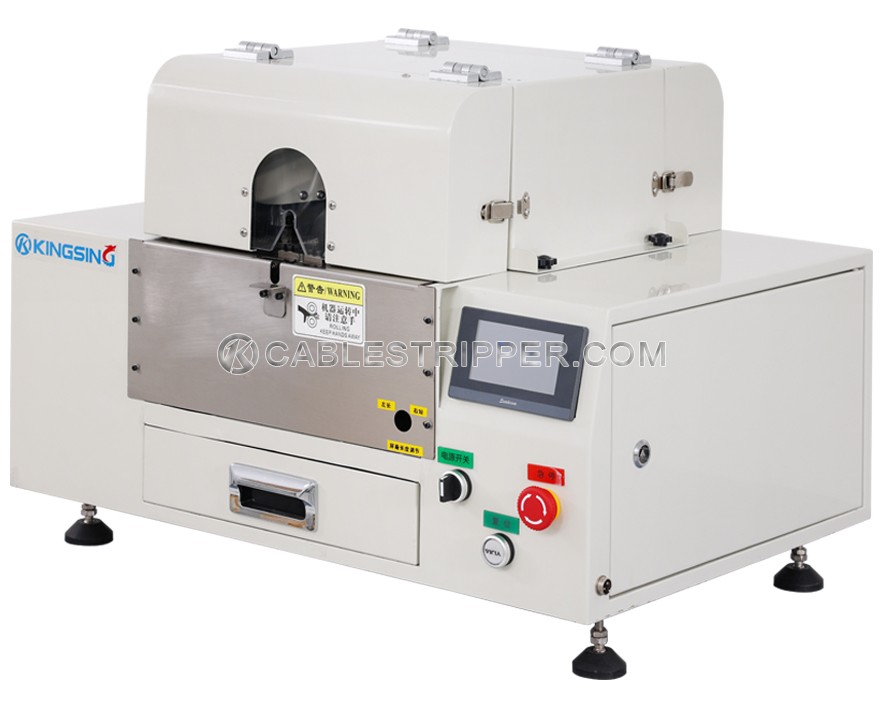

Cable Shield Combing and Cutting Machine

  • Model:KS-S258C
  • Net. Weight:
  • Dimension:420×730×430mm

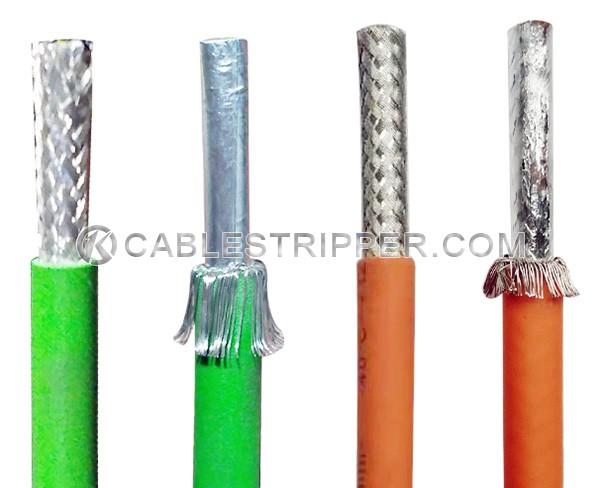

This is an automatic cable shield brushing cutting and turning over machine, the cable outside jacket needs to be stripped in advance, the operator only needs to put the cable head into the processing area, then it can automatically brush the shielding, cut it to the set length, and turn over the left shield. It's usually used for processing all kinds of data cables and power cables with braided shielding.

The braided shielding is cut off by a ring blade, and the cut surface is flat and neat. Color touch screen operation interface, the cutting length of the shield is adjustable.

KINGSING

Download: (1)

Available Cable Diameter: Φ2.5~8mm

Shielding Length Range: 10~35mm (Can be customized)

Shield Turn Over Length: 3~20mm (Can be customized)

Circle Time: 2~3s/pc

Air Source: 0.5~0.7Mpa

Dimension: 420×730×430mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
