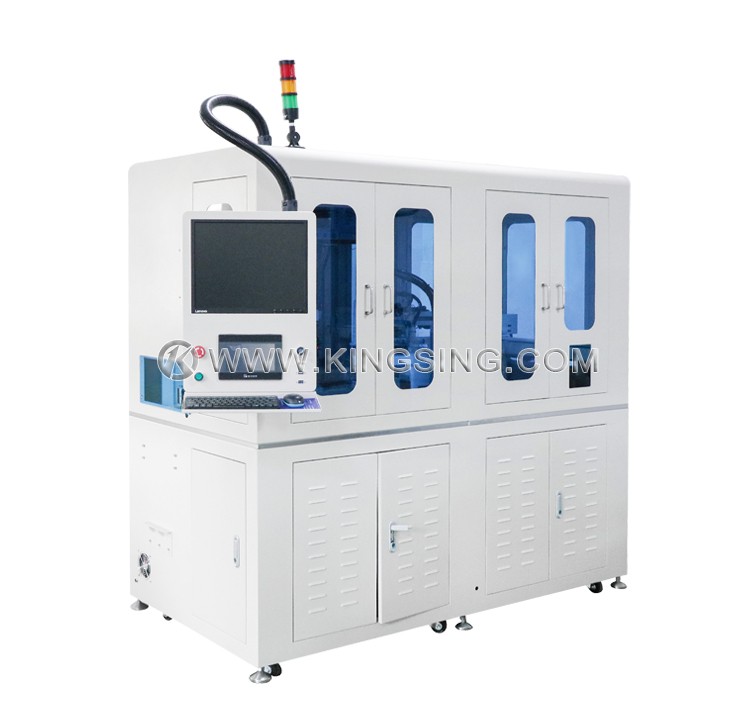

Automatic Coaxial Cable Crimping and Soldering Machine (short-wire type)

  • Model:
  • Net. Weight:
  • Dimension:

The equipment can be fully automated to realize the entire process of automatic wire stripping-automatic detection-automatic terminal crimping-automatic tin soldering-automatic electrical testing-automatic receiving, and can meet the docking of production process equipment such as back-end welding boards.

Cutting capacity: 25mm-200mm (the stripping size of the dipped tin end of 25mm products does not exceed 5mm)

Processing diameter: 0.81-1.78mm

Cutting depth setting unit: 0.01mm

Equipment utilization rate: ≥95%

Finished product yield: ≥99%

Working pressure: not less than 0.5Mpa

Processing accuracy: Tolerance of stripping at both ends ±0.1mm Total length tolerance ±0.2mm

Working power supply: AC220V±10V

Dimensions: 2300*1500*2200mm

Power: 3kW

Weight: 1200kg

Production efficiency: 700-1000PCS/H (depending on the stripping length)
