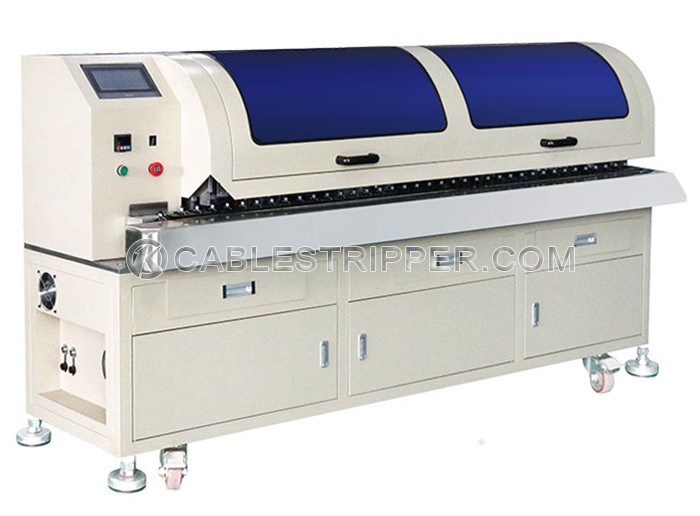

Cable Shield Brushing Twisting and DC Connector Welding Machine

  • Model:KS-S006
  • Net. Weight:500kg
  • Dimension:2270×780×1300mm

This machine is specially designed for processing DC cables with braided shielding, it integrates multiple functions and can automatically complete the following actions: jacket stripping, shield brushing and twisting, aluminium foil mylar removing, core wire stripping, DC connector welding, etc.

KINGSING

Download: (1)

Availabel Wire Size: Φ2~8mm (Can be customized)

Jacket Stripping Length:  10~40mm (Can be customized)

Power Supply: 220V 50/60Hz

Net. Weight: 500kg

Dimension: 2270×780×1300mm

ModelKS-S006AKS-S006B
Jacket Stripping
Shield Brushing
Shield Twisting
Shield Insert Tube×
Heat Shrinking×
Mylar Removing×
Core Wire Stripping
DC Connector Welding
Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
